Control Solution

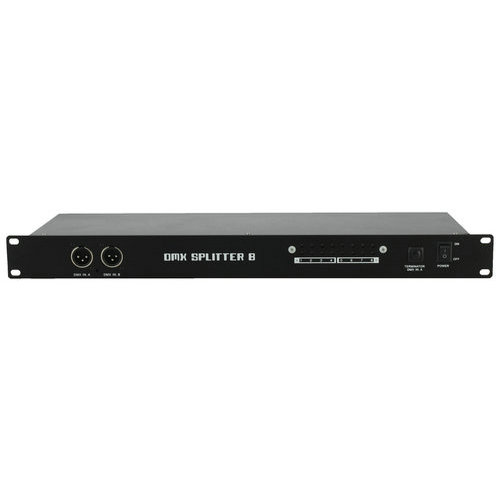

DMX Splitter 8

Model : R-DS8
Brand : ROYLITE
Product description：this is a electric isolated DMX splitter, with 2 DMX inputs , 3pin or 5pin optional,, DMX signal outputs 8 ways .
INQUIRY

Voltage: AC 90V-240V,50HZ/60HZ

Unit size: 482 x 147 x 44mm (19" Rack, 1U)

Unit weight: 3kgs

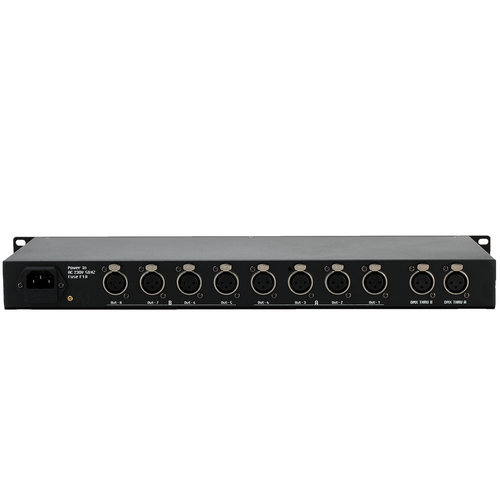

1-8 DMX signal splitter

DMX signal isolated electrically

XLR 3-pin, 5-pin connectors optional

LED indicators display output data fro each channel independently

Cardboard packing 5 in 1 : 56 x 42 x 21 CM, weight 25kgs

Rack case packing 4 in 1 : 58 x 29 x 41 CM, weight 26kgs
