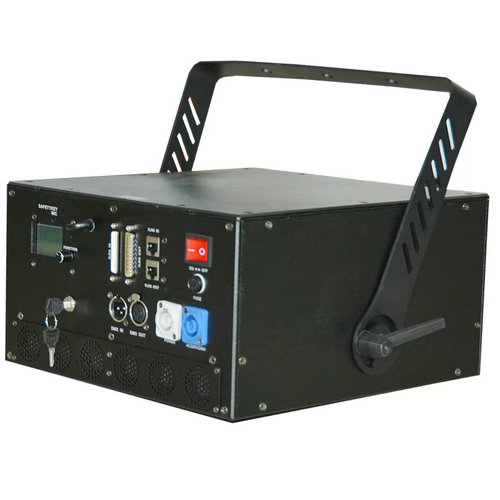

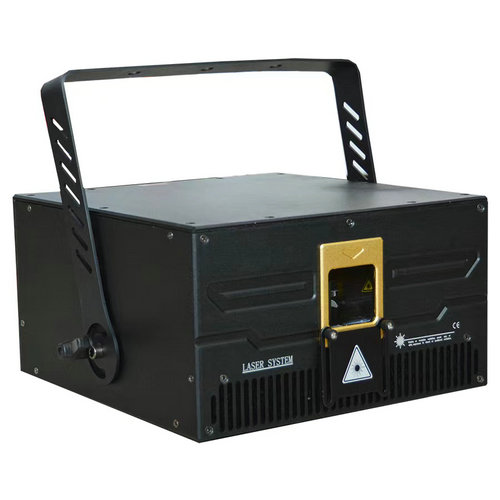

RGB Animation Laser 20w

Rated voltage: AC110-220V Rated frequency: 50～60Hz

Rated power: 250W Laser color: RGB full color/monochrome

Laser power: RGB 20W

Laser light source: G-6W:525NM,R-6W:638NM,B-8W:450NM

Laser pattern: 256 laser animation patterns SD card can save 512

Modulation signal: TTL modulation (analog modulation)

Scanning system: Galvo scanning 30KPPS

Scanning angle: + - 25 degrees

Control mode: DMX512, voice control, self-propelled, computer ILDA interface,Artnet

Control channel: 25 DMX512 channels

Function: It can be controlled by laser software such as pangolin QSFB3/FB4 or fire phoenix. ilda control adopts automatic electronic transfer switch, with scanning system error protection and laser light-off protection. The machine itself has its own pattern size and phase inversion

SIZE: 42*37*32/CM

WEIGHT: 14KGS
