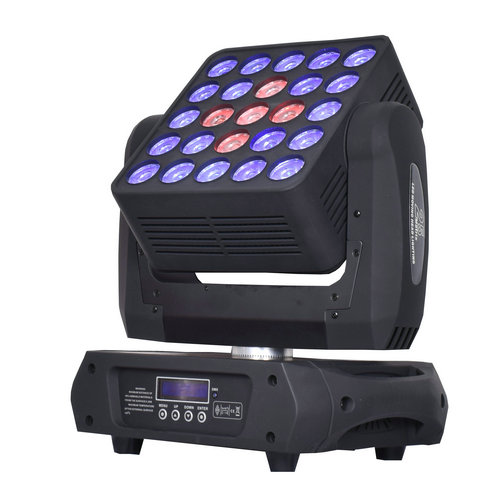

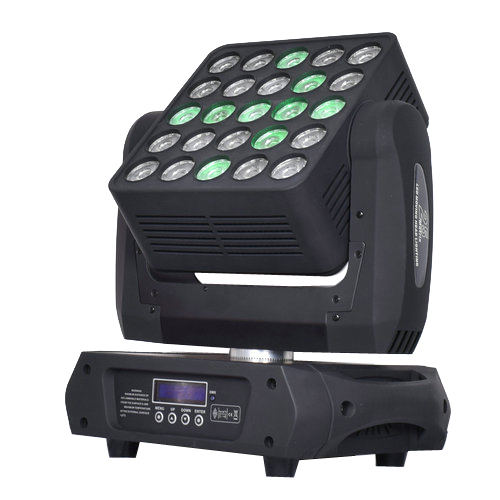

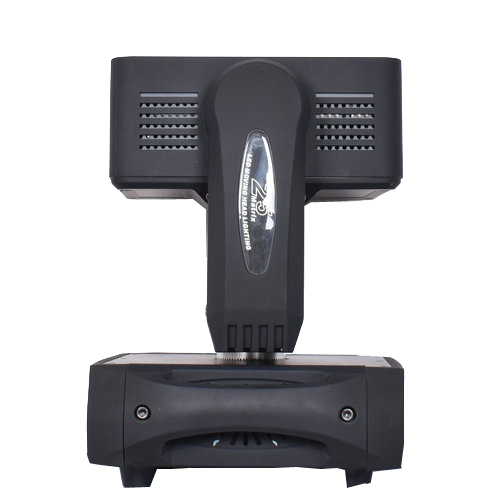

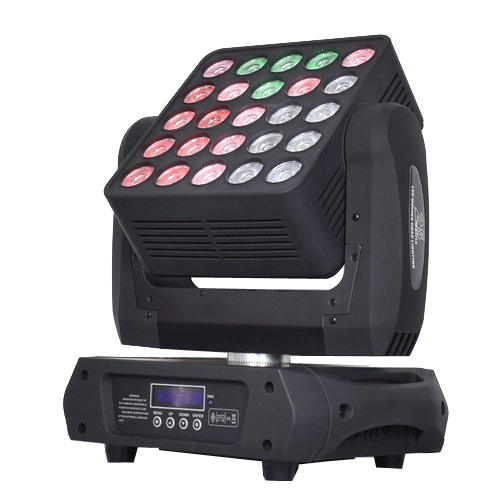

LED Moving Matrix 25 x 15w

LIGHT SOURCE
High quality LED 15w  25pcs
Average life span≥ 50,000h

OPTICAL SYSTEM
LED Lens: 6°

COLOR SYSTEM
RGBW 4 in 1

EFFECTS
0-100% brightness adjustment
Fast speed strobe 1-18/sec.
8 built-in programs

CONTROL AND PROGRAMMING
Control Channel: 20CH / 116CH control channels
Protocol: Standard DMX512
Master/Slave control mode
Menu Display: LCD display

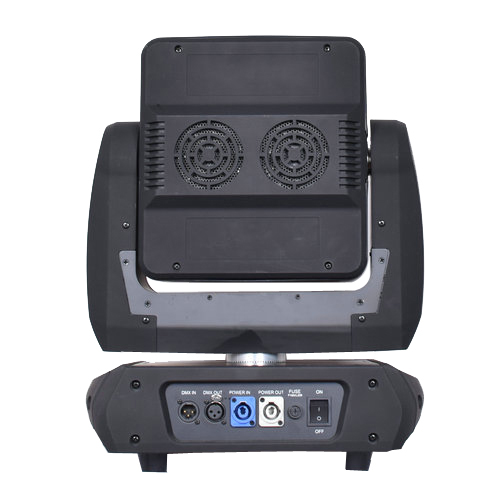

DMX Signal Connection: 3-pin XLR input/output

MOVEMENT PARAMETER
PAN 630°, TILT 240°
Use Pan/Tilt photoelectric reset system to automatically reset in case of accidental movement

ELECTRONIC CONTROL TECHNOLOGY
Extremely small,fast and powerful LED moving head
Fixture reset is controlled through menu or light console
X/Y axis reversed moving function setting
X/Y axis 16bit precision control
Constant power control
DMX channel electronic level monitoring
DMX signal prompt
Overcurrent, overvoltage and overheating protection

POWER SUPPLY
AC100-240V 50/60Hz
Input Power: 400W

PHYSICAL
Net weight : 16kgs
Fixture Dimension: 45cm × 45cm × 60cm
Cardboard packing 1 in 1 : 52 x52  x 62 CM, weight 18kgs
Flightcase packing 2 in 1:  70 x 50 x 72 CM, weight 63kgs
