LIGHT SOURCE
19pcs 15w RGBW 4 in 1 LEDs
Average Life Span>50,000 h
OPTICAL SYSTEM
Beam Angle: 4° - 60°
Lens: High-quality PMMA optical lens, Lens rotation functional.
COLOR SYSTEM
RGBW 4 in 1
EFFECTS
All-optical domain dimming, 65536 grade dimming accuracy
High light output, low glare
Fast strobe: 1-25Hz
Color macro and gradual color change effects
MOVEMENT PARAMETER
Pan 540°, Tilt 240°
CONTROL AND PROGRAMMING
Control Channel: 21/23/35/78/97/99 control channel model
Protocol: Standard DMX512
Menu Display: LCD display

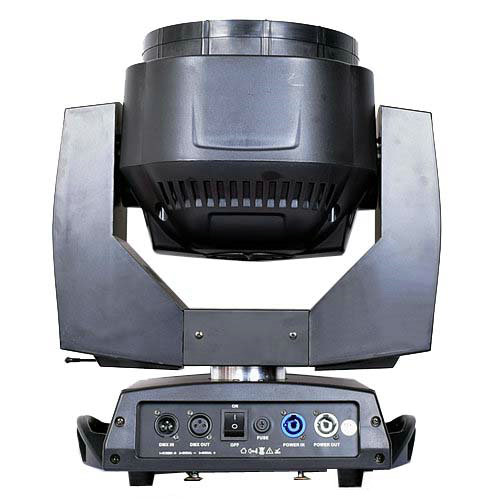

DMX Signal Connection: 3-pin XLR input/output
ELECTRONIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console
0-100% dimmer
Constant current drive mode
Temperature sensor, intelligently adjust the light source power
DMX channel level monitoring
Fixture information query
Intelligent fan speed adjustment
Initial brightness setting for all colors
POWER SUPPLY
AC100-240V
Input Power: 450W
SAFETY PROTECTION
Overcurrent, overvoltage and overheating protection
WORKING POSITION
Any safe position to install
WORKING TEMPERATURE
﹣10℃ - 40℃
PHYSICAL
Fixture dimension: 412mm x 273mm x 478mm
N.W: 16 kgs
Cardboard packing 1 in 1 : 53 x 42 x 51 CM weight 19kgs
Flightcase packing 2 in 1 : 70 x 46 x 70 CM weight 60kgs
