IP65 Outdoor Lights

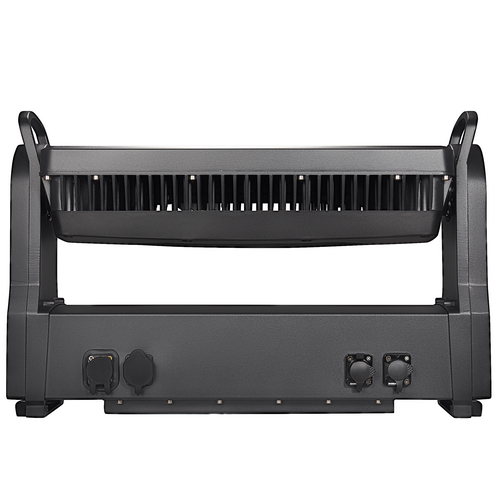

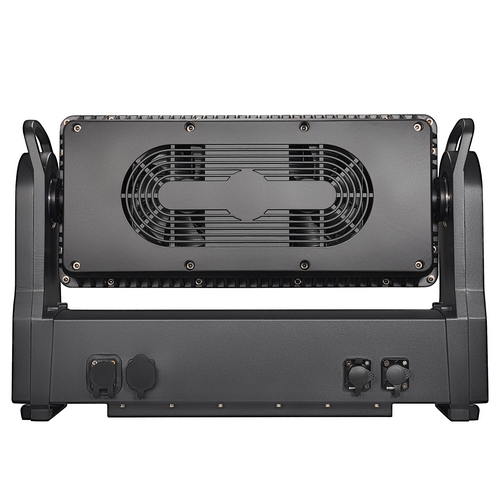

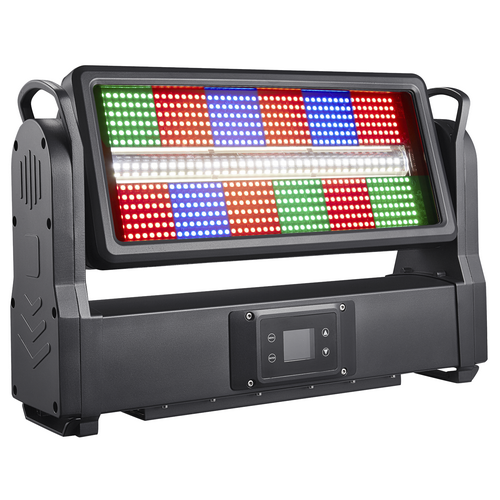

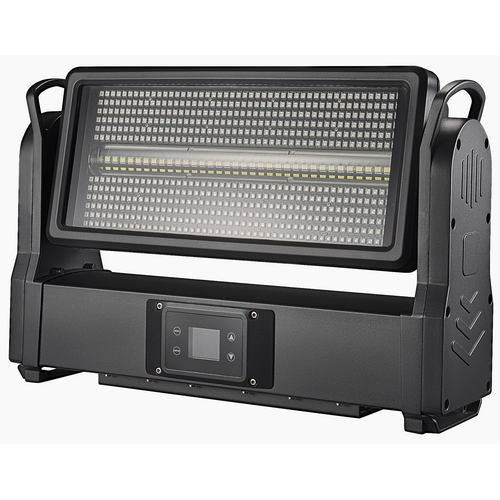

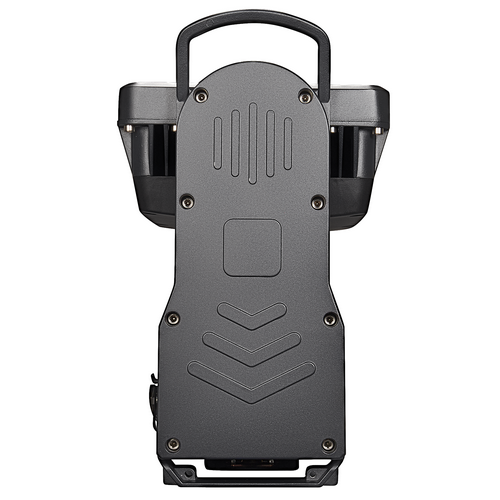

LED Rotate Strobe 1000IP

Model : R-LRS1000
Brand : ROYLITE
LED power : 1000w
Tilt moving : 0 - 185°
Product description：Waterproof moving strobe light, LED tube with 144pcs 5w white LEDs,4 pixels separately. LED panel with 480pcs 0.5w RGB 3 in 1 LEDs,8 pixels separately.True 1 connetor in and out.support RDM.
INQUIRY

Light Source:
Strobe Panel LEDs:
SMD5050 0.5W RGB 3in1 LEDs 480pcs ,LED Segments: 8 (2 x 4)

Strobe Tube LEDs:
SMD3535 5W 6500K cool white LEDs 144pcs, LED Segments: 4

Movement
Resolution: 8-16 Bit
Position Feedback: yes
Tilt (Degrees): 185°

Control
Control Modes: 7CH / 14CH / 42CH
Display: Illuminated graphic LCD
Protocol: USITT DMX-512, RDM
RDM: Bidirectional communication
Wireless DMX: 2.4 GHz W-DMX™(optional)
Cooling: Temperature controlled, overheating protection

Effects
Dimmer: 0-100% electronic
Shutter: electronic, max. 20 Hz
Internal Effects: LED Macro Effects

Connectors
Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out
Power Input: Seetronic powerCON TRUE1 In/Out

Operating Condtions
Mains voltage: 100-240V AC / 50-60Hz
Power: 1000W
Maximum ambient temperature:-30°C / 86°F, 50°C / 122°F
Operating Position: any

Mounting Options
Standing: Rubber feet
Hanging: Omega-Bracket
Safety wire attachment: foldout eyelets

Shipping
Single fixture: cardboard (inner and outer cartons)
Tourpack: 4-way Flight Case

Housing Colors
Standard colors: black

Dimensions & Weight
Length: 482 mm / 18.9 in
Width: 178 mm / 9.0 in
Height (head horizontal): 243 mm / 9.5 in
Weight
N.W: 10 kg
G.W: 12.5 kg
