LIGHT SOURCE
Light Source: 2pcs x 100W COB LEDs, warm white 3200k
Life Span: ≥50,000 h
OPTICAL SYSTEM
Lens: 60° and 30°, for optional
FEATURES
Housing: Aluminum stretching material
each head pan angle manual adjustable 0 - 24°

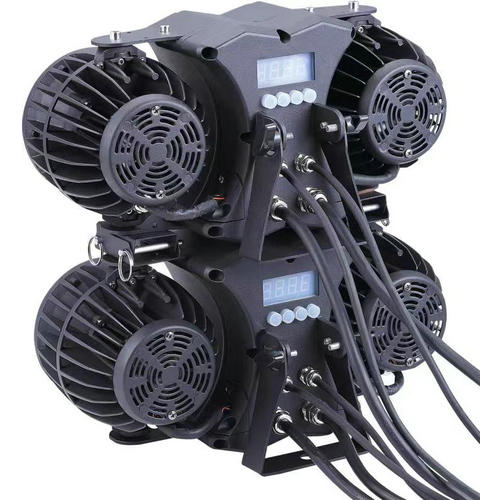

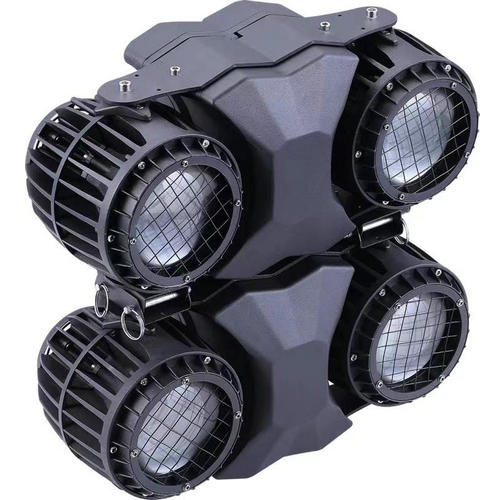

Structure: available for vertical/horizontal splicing
3-pin or 5-pin XLR connectors
Powercon In/Out for daisy-chain
ELECTRICAL
AC: 100-240V 50/60 Hz
Input Power: 220W
ELECTRONIC CONTROL
Protocol: DMX512
Channel Mode: 1CH,3CH,4CH,9CH

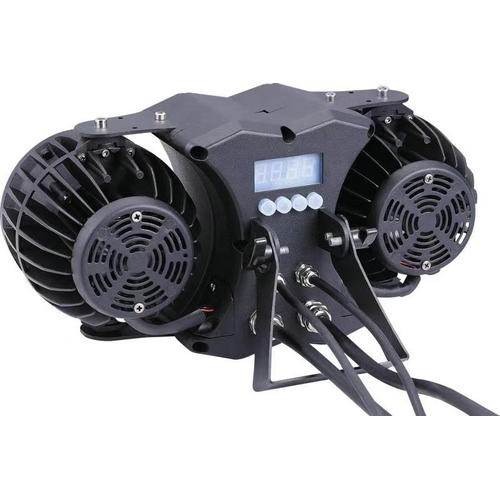

Control Panel: LED lattice+ button
Control Mode: Pixel control
Thermal management system ensures long life of LEDs
Electronic protection against short circuit
waterproof fan cooling
IP RATE
IP65
INSTALLMENT
Position: Any
Hanging: Standard hanging
Safety: Safety cable
WORKING ENVIRONMENT
Temperature: -5℃~40℃
Humidity: 5%~85%
PHYSICAL
Product Dimension: 40 x 24 x 25 CM
Cardboard packing 1 in 1 : 50 x 32 x 35 CM , weight 9.5kgs
Flightcase 4 in 1 : 100 x 45 x 40 CM weight 58kgs
Net Weight: 8kg
