LIGHT SOURCE
Light Source: 4pcs x 100W COB LEDs,color temp 3200K
Life Span: ≥ 50,000 h
OPTICAL SYSTEM
Lens: 30° / 60°
FEATURES
Housing: Aluminum die-casting material
each head pan angle manual adjustable 0 - 24°
Structure: available for vertical/horizontal splicing
3-pin or 5-pin XLR connectors
ELECTRICAL
AC: 100-240V 50/60 Hz
Input Power: 450W
ELECTRONIC CONTROL
Protocol: DMX512
Channel Mode: 1CH,3CH,4CH,9CH

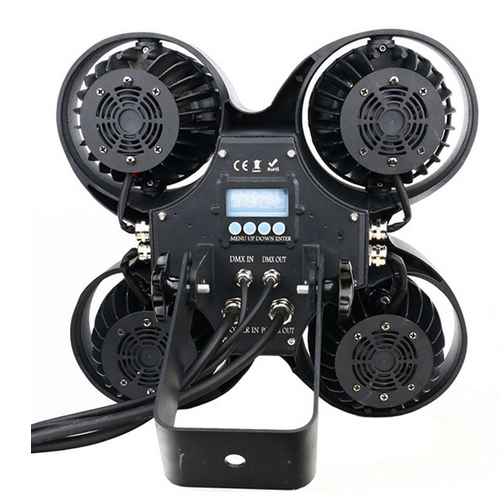

Control Panel: LED lattice+ button
Control Mode: Pixel control
Thermal management system ensures long life of LEDs
Electronic protection against short circuit
Adjustable waterproof fan cooling
IP RATE
IP65
INSTALLMENT
Position: Any
Hanging: Standard hanging
Safety: Safety cable
WORKING ENVIRONMENT
Temperature: -5℃~40℃
Humidity: 5%~85%
PHYSICAL
Product Dimension: 40 x 40 x 18 CM
Cardboard packing 1 in 1 : 50 x 50 x 21 CM , weight 11kgs
Flightcase 4 in 1 : 72 x 45 x 52 CM weight 58kgs
Net Weight: 9kg
