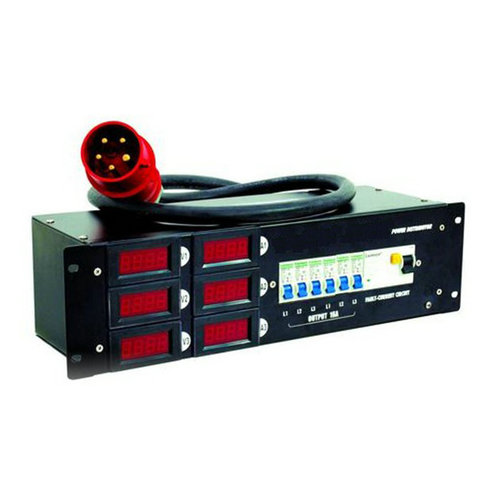

Power Distributor 32A

Specially designed for larger distribution needs

3 U necessary for installation

32 A three phase current input via 5 x 6 mm2 power cable and plug

The entire distributor is secured via 30 mA Residual Current Device (RCD)

Voltage and current display of every phase

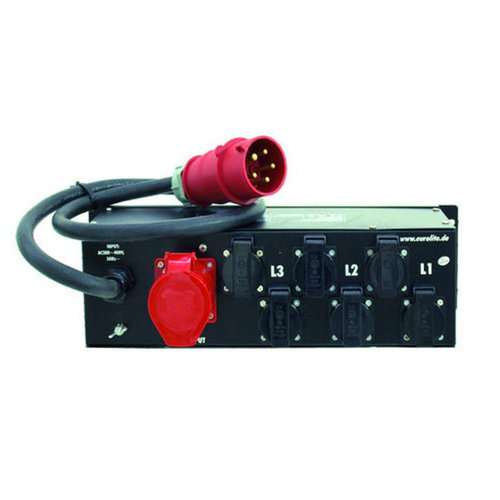

32 A three phase current output on the rear panel

6 safety sockets on the housing back (2 per phase)

Each safety socket feature fuse protection via 16 A automatic circuit breakers

With M6 earthing screw in order to ground a rigg if necessary

Power supply: 380-400 V AC, 50 Hz ~ 60Hz

Max. power output: 22080 W

Max. output/phase: 7360 W

Max. current/phase: 32 A

Fuses : 6 x 16A 1 Ph, FI/RCD 40A/0.03A

Height: 3 U

Dimensions (LxWxH): 482 x 230 x 133 mm 19"

Weight: 6.5 kg
