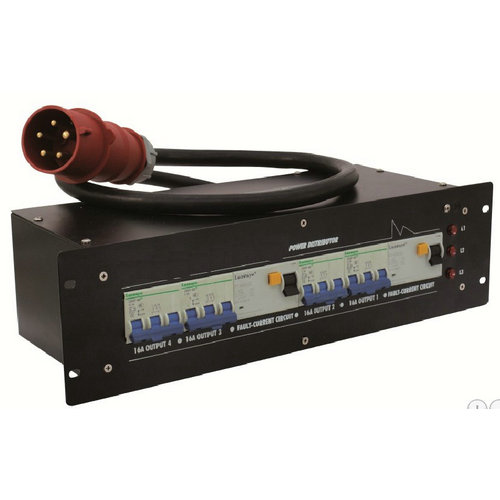

Power Distributor 32A

Specially designed for larger distribution needs

3 U necessary for installation

32 A three phase current input via power cable and plug

The entire distributor is secured via two 30 mA Residual Current Devices (RCD)

Control lamps indicate each phase

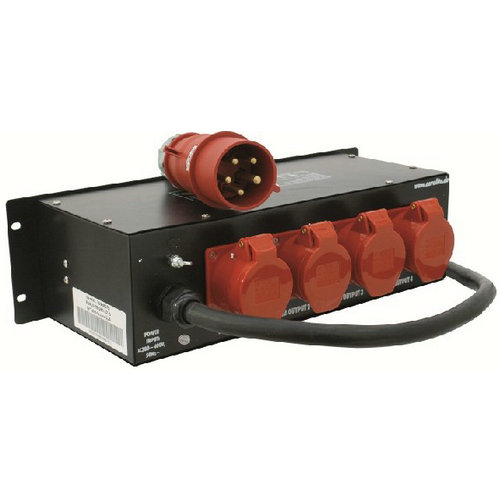

4 CEE sockets on the housing back (2 per RCD)

Each CEE socket features fuse protection via 16 A automatic circuit breakers

With M6 earthing screw in order to ground a rigg if necessary

Power supply: 380-400 V AC, 50 Hz ~ 60Hz

Max. output/channel (CEE socket): 3680 W

Max. current/channel (CEE socket): 16 A

Max. output/phase: 7360 W

Max. current/phase: 32 A

Height: 3U

Dimensions (LxWxH): 245 x 482 x 132 mm   19"

Weight: 6.6 kg
