Beam Spot Wash 380W

  • Model : R-BSW380
  • Brand : ROYLITE
  • Lamp : Osram HRI 371w
  • Beam angle : 1.5°- 40°
  • Product description:This is a beam spot wash 3 in 1 moving head light,use Osram HRI 371w bulb,beam angle zooming 1.5° - 40°,with 12 colors,12 fixed gobos,7 rotate gobos, 2 types of prisms.
  • INQUIRY

LAMP SOURCE
Lamp type: Osram HRI 371w bulb, lifespan 2000 hours
Color temp: 8000K
Reflector: Lamp and reflector together in one unit
Lens : high precision optical lens
Beam angle: 1.5°- 40° linear zooming

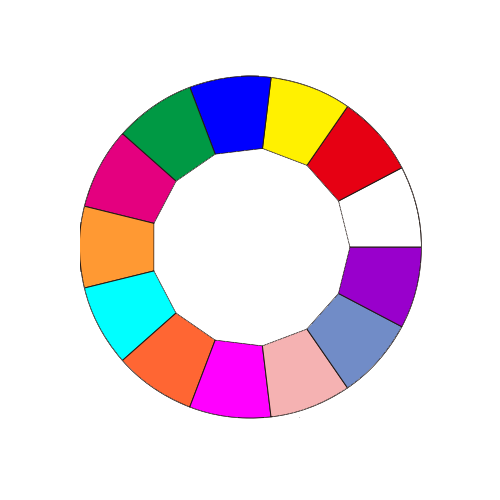

COLOR SYSTEM
12 color filters + white, color rainbow can be created

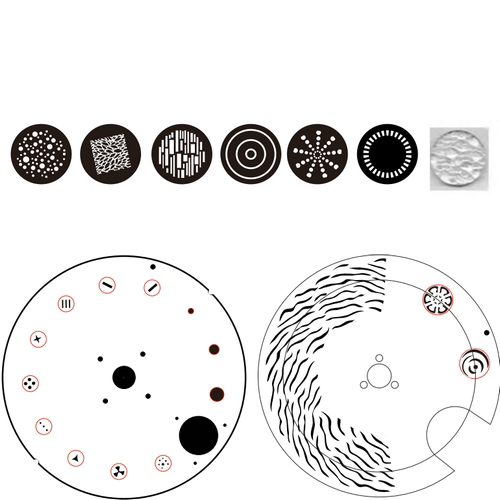

GOBO SYSTEM
1 rotating gobo wheel with 7 gobos + white, with the features of self-rotating, water running and shaking effects,
gobo wheel can be positioned
1 fixed gobo wheel with 12 gobos + white

EFFECT EQUIPMENT
Independent frost soft effect
Mechanical linear 0-100% dimming
Fast strobe, multiple strobe effects (pulse/asynchronous/synchronous/slow- medium-fast at random)
Prism: 2 prisms,(1 self-rotating 8-facet circular prism, and 1 self-rotating 6-facet linear prism), bidirectional rotation

MOVING PARAMETER
Angle: Pan 540°, Tilt 270°
PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident

CONTROL AND PROGRAMMING
Control channel: 16CH / 24CH
Protocol: Standard DMX512 protocol
Menu display: 16 million pixels LCD display , random switch of Chinese and English language; menu available to
display180° reversely.

ELECTRONIC CONTROL TECHNOLOGY
Intelligent fan control
Electronic sensor detection
DMX control monitor
X/Y three-phase motor drive
Query by LCD screen

POWER SUPPLY
AC100-240V 50/60Hz
Electronic ballast
Max input power: 600w

PHYSICAL
Net Weight : 22kg
Product Dimension: 43 X 30 X 64 cm
Cardboard packing 1 in 1 : 47 x 37 x 70 CM , weight 24kgs
Flightcase packing 2 in 1 : 71 x 42 x 80 CM , weight 69kgs
