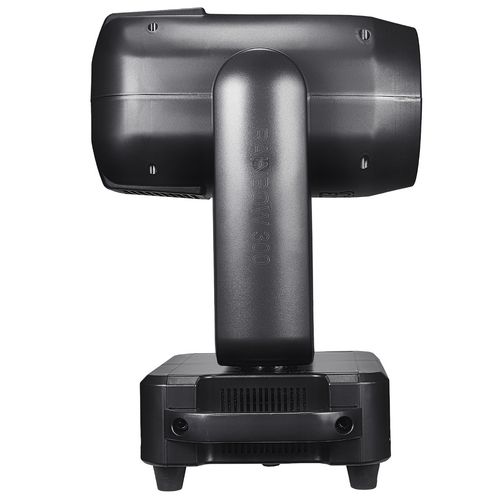

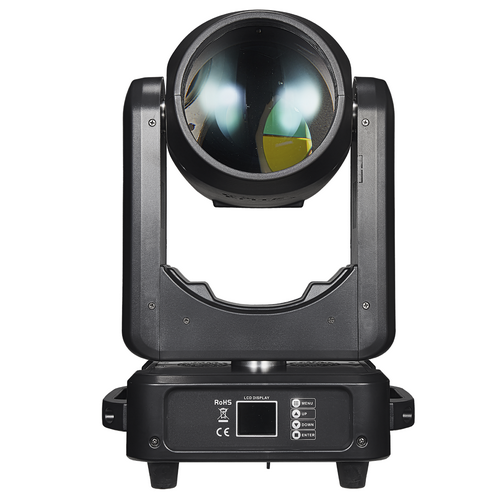

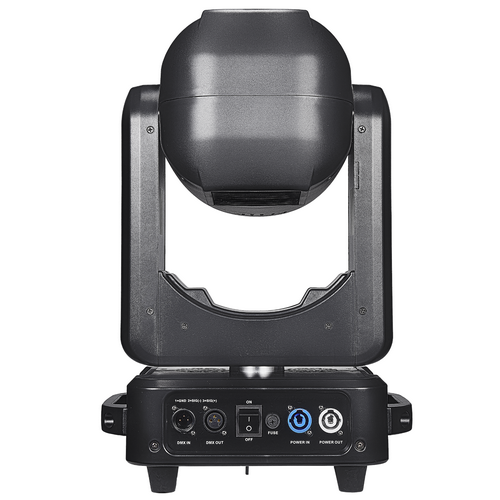

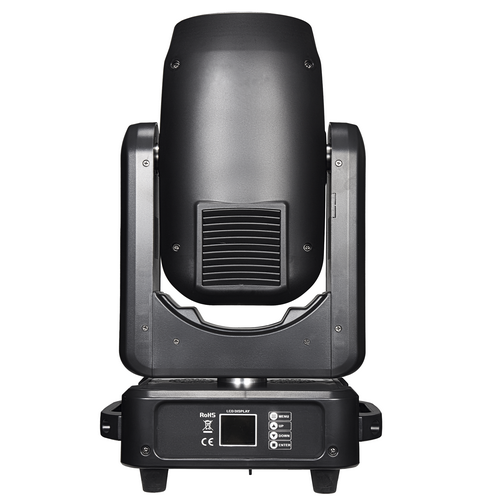

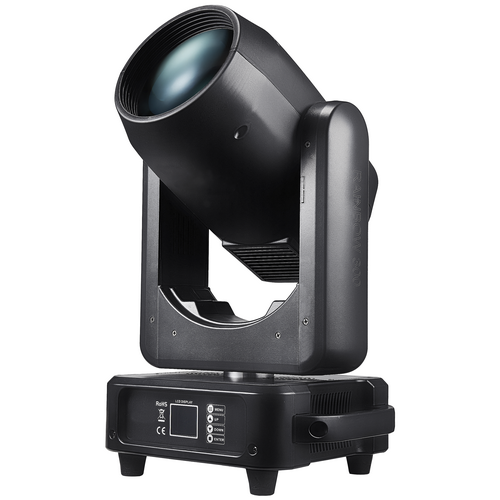

Beam Spot Moving Head

LED Beam 200w

Model : R-LMB200
Brand : ROYLITE
LED : Moduled 200w
Beam angle : 0 - 4°
Product description：This is a LED based Moving head beam light, 14 colors and 17 gobos, 8-facet circular prism, LED lifetime is 30000 hours, Super bright ! same level brightness as 5R Beam.
INQUIRY

LAMP SOURCE
Lamp type: High quality,High lever of brightness, single white LED 200w, lifespan 30000h
Color temp : 6500K
Beam angle: 0 - 4° ,
Lens: Glass optical 3 lens group

COLOR SYSTEM
1 Fixed color wheel with14 color filters + white
two-way rotating and rainbow effect

GOBO SYSTEM
1 Gobo wheel with 17 gobos+white

EFFECT EQUIPMENT
1 rotating 8-facet prism with moving effect, 1 frost effect, dimming and strobe function
0-100% linear dimmer, strobe speed 1-13/sec

MOVING PARAMETER
Angle: PAN=540°, TILT=270° 16 bit precision scan
PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident.

CONTROL AND PROGRAMMING
Control channel: 16CH control mode
Protocol: Standard DMX512 protocol;
Display: LCD screen
Resolution control: Pan, Tilt, Gobo
DMX signal connection: 3 or 5-pin XLR input / output

ELECTRONIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console
Intelligent fan control
Electronic sensor detection
DMX channel level monitoring
Motor zero 16bit regulation and control

POWER SUPPLY
AC100-240V 50/60Hz
Input power: 300w

PHYSICAL
Weight 13kgs
Product Dimension : 31 x 25 x 43 CM
