Sharp Beam 300

  • Model : R-MB300
  • Brand : ROYLITE
  • Lamp : Osram HRI 251w
  • Beam angle : 0 - 2°
  • Product description:with Osram HRI 251w bulb, beam angle 0 - 2°, 14 colors and 13 metal gobos. 2 prism wheels makes 3 prism effect.Lux: 400000 lm at 10m, 210000 lm at 15m.beam lens diameter 152mm
  • INQUIRY

LAMP SOURCE
Lamp type: Osram HRI 251w bulb,lifetime 3000 hours
Color temp : 8000K
Beam angle: 0 - 2°
Lux: 400000 lm at 10m, 210000 lm at 15m
Lens: Glass optical 3 lens group,152mm diameter

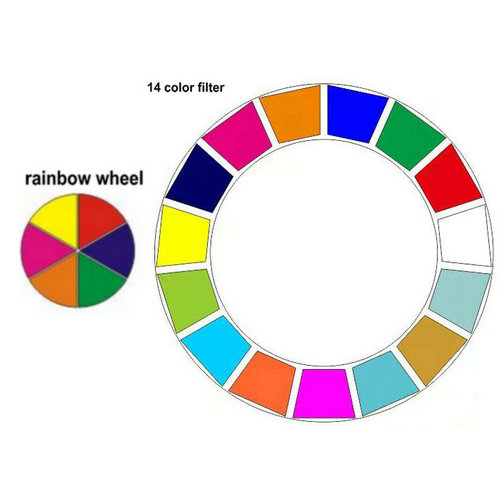

COLOR SYSTEM
1 Fixed color wheel with14 color filters + white
two-way rotating and rainbow effect

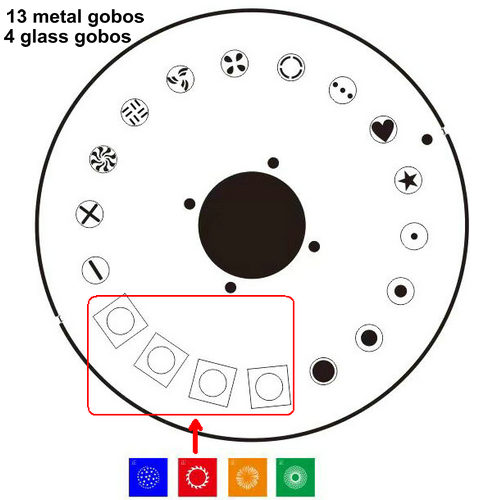

GOBO SYSTEM
1 Gobo wheel with 13 gobos+white

EFFECT EQUIPMENT
2 prism wheels makes 3 prism effects
1 frost effect, dimming and strobe function, 0-100% linear dimmer, strobe speed 1-13/sec

MOVING PARAMETER
Angle: PAN=540°, TILT=270° 16 bit precision scan
3 Phases motor, fast movement.
PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident.

CONTROL AND PROGRAMMING
Control channel: 16CH  (standard) / 20CH  (extended)
Protocol: Standard DMX512 protocol;
Display: LCD screen
Resolution control: Pan, Tilt, Gobo
DMX signal connection: 3 or 5-pin XLR input / output

ELECTRONIC CONTROL TECHNOLOGY
Fixture reset is controlled through menu or light console
On / Off lamp through remote control
Intelligent fan control
Electronic sensor detection
DMX channel level monitoring
Motor zero 16bit regulation and control

POWER SUPPLY
AC100-240V 50/60Hz
Electronic ballast
Input power: 390w

PHYSICAL
Product Dimension: 33cm × 28cm × 51cm
Net Weight: 14kgs
