Beam Spot Moving Head

  • Sharp Beam 500
  • Sharp Beam 500
  • Sharp Beam 500
  • Sharp Beam 500
  • Sharp Beam 500
  • Sharp Beam 500
  • Sharp Beam 500
Sharp Beam 500Sharp Beam 500Sharp Beam 500Sharp Beam 500Sharp Beam 500Sharp Beam 500Sharp Beam 500

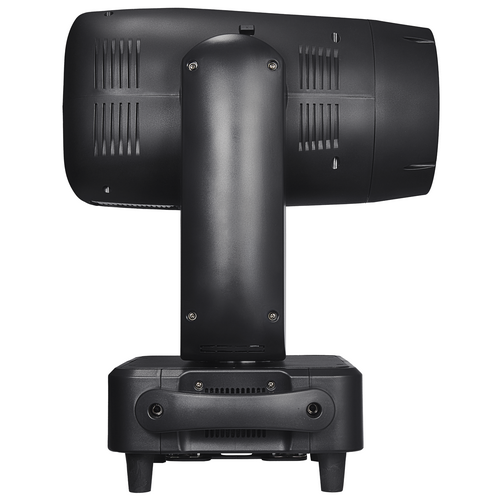

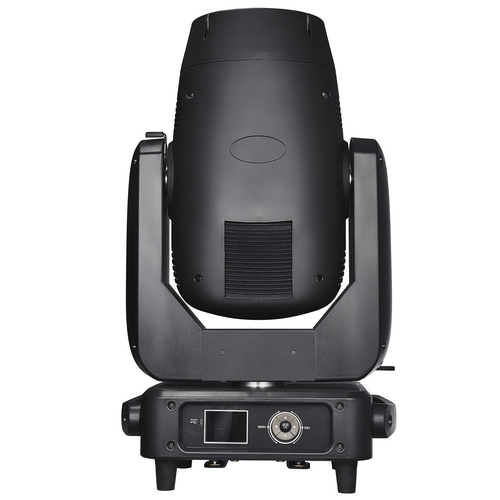

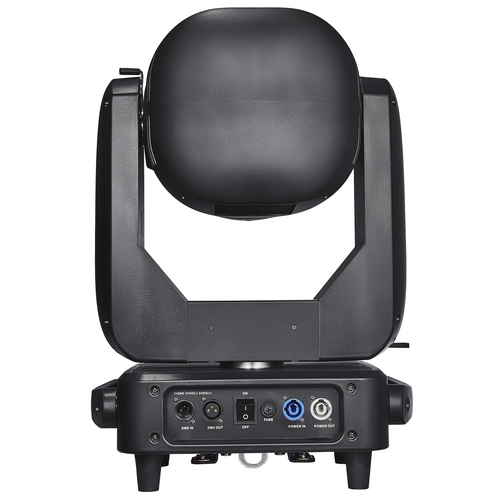

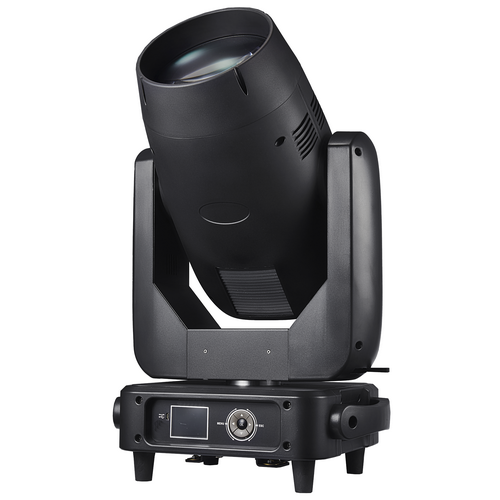

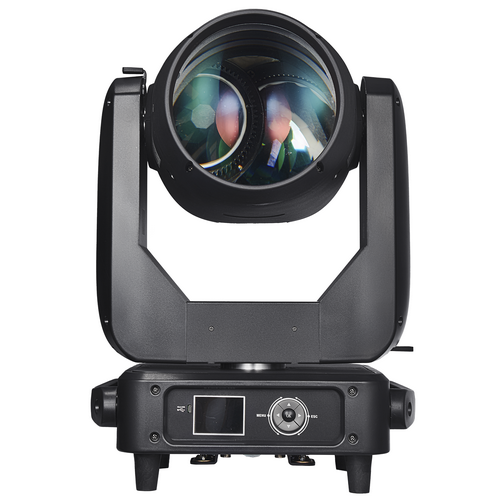

Sharp Beam 500

  • Model : R-MB500
  • Brand : ROYLITE
  • Lamp : Philips MSD 420w
  • Beam angle : 0 - 2°
  • Product description:Suitable for outdoor big event, High output Philips MSD 420w Bulb, beam angle 0 - 2°, 13 colors, 15 metal gobos. 2 prism wheels makes 3 prism effect.Lux: 750000 lm at 10m
  • INQUIRY

LAMP SOURCE
Lamp type:  Philips MSD 420w bulb, lifespan 2500 hours
Color temp : 8000K
Lux: 750000lm at 10m
Lens : high precision optical lens,180mm diameter
Beam angle:  0 - 2°

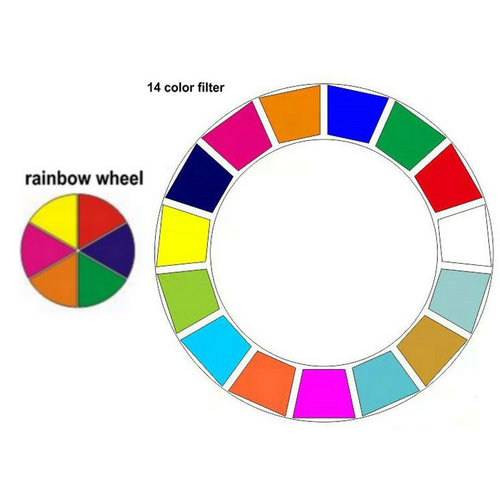

COLOR SYSTEM
13 color filters + white, color rainbow can be created

GOBO SYSTEM
15 fixed metal gobos+white

EFFECT EQUIPMENT
Independent frost soft effect
Mechanical linear 0-100% dimming
Fast strobe, multiple strobe effects (pulse/asynchronous/synchronous/slow- medium-fast at random)
2 prism wheels (bi-directionally,rotatable,speed adjutsable)

MOVING PARAMETER
Angle: Pan 540°, Tilt 270°
PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident

CONTROL AND PROGRAMMING
Control channel: 18CH / 22CH
Protocol: Standard DMX512 protocol
Menu display: 16 million pixels LCD display , random switch of Chinese and English language; menu available to
display 180° reversely.

ELECTRONIC CONTROL TECHNOLOGY
Intelligent fan control
Electronic sensor detection
DMX control monitor
X/Y three-phase motor drive
Query by LCD screen

POWER SUPPLY
AC100-240V 50/60Hz
Electronic ballast
Max input power: 600w

PHYSICAL
Net Weight : 19kG
Product Dimension: 37 X 32 X 66 cm
